Every defect found at the end of the line carries the full cost of production.
Every defect found at the end of the line carries the full cost of production. By the time a battery reaches final testing, it has been assembled, filled, formed and sealed. A late reject means that all of this value is lost, and if the root cause sits upstream, the next batteries are already running into the same problem.
This is why battery end of line testing equipment does far more than sort good batteries from bad ones. Well-planned test stations keep the line running at target cycle time, separate real defects from false rejects and deliver the data needed to fix problems where they start. Poorly matched equipment does the opposite: it creates bottlenecks, unnecessary scrap and blind spots.
This guide looks at the core test stations in a modern end of line testing setup and what each one detects. We then walk through a four-step framework that helps you match test equipment to your battery portfolio, your throughput targets and your process data requirements.
What Is Battery End of Line Testing?
Battery end of line testing is the final series of electrical, leak and physical checks a battery passes before it is released for shipment. It confirms that each unit meets its electrical specification, is mechanically sound and is correctly identified.
In a lead-acid plant, end of line testing sits at the very end of the finishing line. By this point, the battery has already passed several process steps:
- Assembly: plate stacking, cast-on strap, cell connection and heat sealing of the cover
- Filling and formation: electrolyte filling and the first charge that activates the plates
- Finishing: acid level adjustment, washing and drying
- End of line testing: final electrical tests, leak and insulation checks, weight control and labeling
End of line testing is different from in-process testing. In-process tests, such as an air leak test directly after heat sealing, check a single process step while the battery is still being built. End of line tests check the finished product as a whole, for example whether it delivers the required cranking performance or whether its open circuit voltage matches the expected state of charge.
Both levels work together. In-process checks catch defects early, when they are still cheap to fix. End of line testing is the final safety net and the point where all quality data for one battery comes together. For line planners, the key question is not whether to test at the end of the line, but which combination of stations covers the relevant defect risks without slowing down production.
In short: End of line testing is the final quality gate of a battery finishing line, and its value depends on how well the test stations match the product and the process.
The Core Test Stations in a Battery End of Line Testing Line
Electrical Tests: OCV, CCV and High Rate Discharge

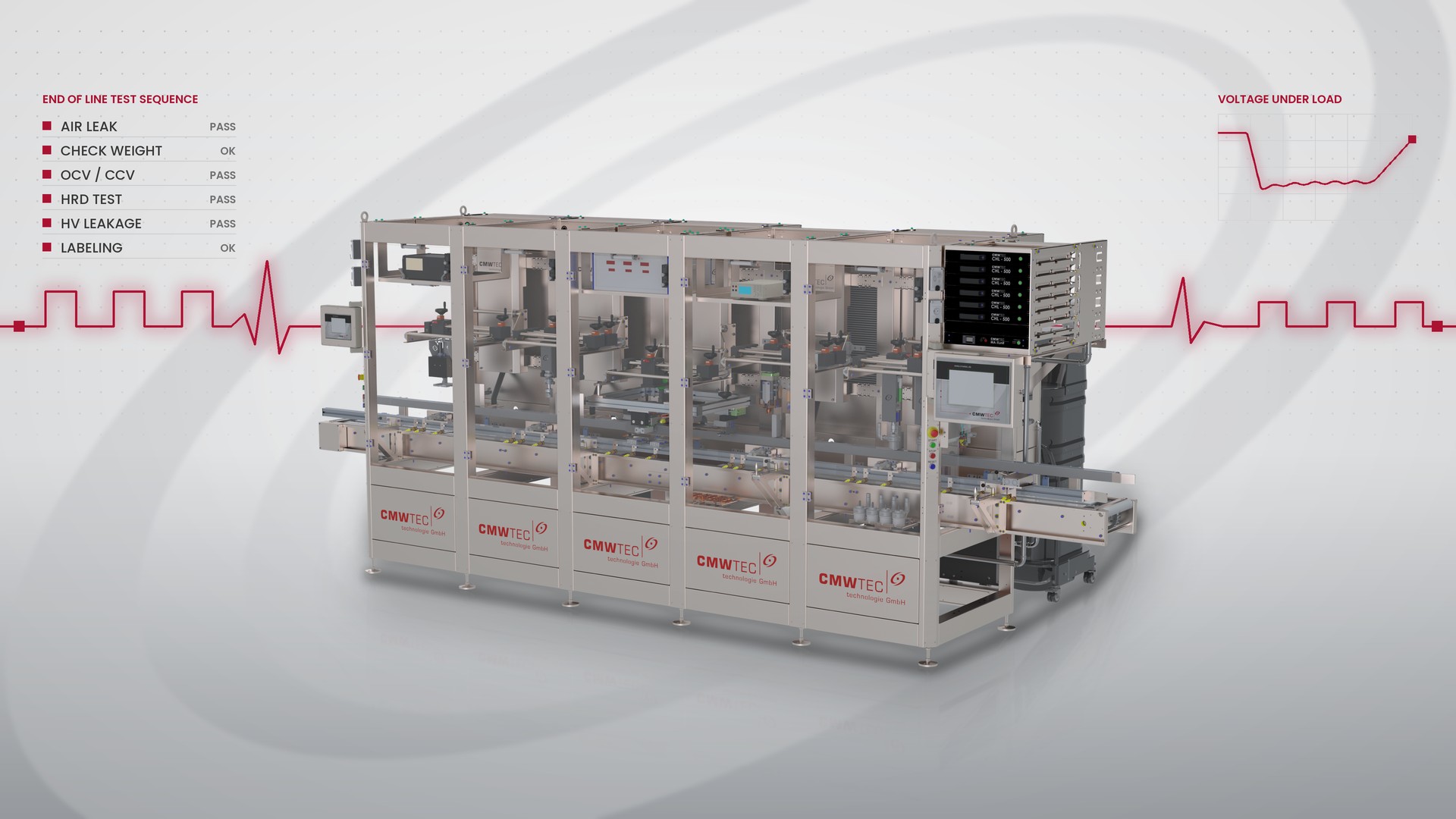

Electrical testing takes place after formation in the finishing area. A combined end of line test machine can measure:
- OCV (open circuit voltage): the battery voltage without load
- CCV (closed circuit voltage): the voltage under load
- deltaV: the difference between the two, as an indicator of internal condition
- HRD (high rate discharge): a short, high-current load that shows whether the battery can deliver its rated performance
For high-current testing, modular E-load systems reach up to 3000 A. Test software can run five test profiles (constant current, voltage, resistance, power) and evaluates internal resistance, impedance and relaxation voltage. For a deeper look at HRD specifications, see our guide on choosing the right HRD tester.
Leak and Insulation Tests: Air Leak and High Voltage Leakage
Leak testing happens at two points. The air leak test checks the second cover directly after heat sealing by applying overpressure to the vent holes. The high voltage leakage test runs in the finishing line and checks the seal line between cover and container as well as the container bottom, at up to 12 kV.
Weight and Identification: Check Weight and Labeling
A check weight system weighs batteries before and after filling and compares the result with the recipe weight, at up to 6 batteries per minute. A labeling machine applies top or side labels at up to 12 batteries per minute, optionally with integrated printing.
| Station | Position in the line | What it checks | CMWTEC equipment |
|---|---|---|---|
| Air leak test | After heat sealing | Tightness of second cover via vent holes | Air Leak Test (fully / semi-automatic) |
| Check weight | Before and after filling | Weight vs. recipe specification | Battery Check Weight System |
| OCV / CCV / deltaV | Finishing area, after formation | Voltage without and under load | End-of-Line Test Machine |
| High rate discharge | Finishing area, after formation | Performance under high current | EOL Test Machine, E-Load System up to 3000 A |
| High voltage leakage | Finishing line | Seal line cover/container, container bottom | High Voltage Leakage Test |
| Labeling | End of line | Product identification | Battery Labelling Machine |
In short: Most defects are caught by combining electrical end of line tests with targeted leak and weight checks at the right points in the process.
Step 1 of the Framework: Define Your Battery Portfolio and Defect Risks
The right battery end of line testing equipment starts with a clear view of what you produce. Before comparing machines, line planners should answer three questions.
- Which battery types run on the line?
Automotive, truck and industrial batteries place different demands on test equipment. Industrial batteries, for example, often require dedicated HRD testing combined with internal resistance measurement, while automotive lines typically focus on high throughput and short changeover. If you also produce lithium batteries, they need a separate end of line test station with its own test logic.
- Which terminal types must be contacted?
Electrical end of line tests depend on reliable terminal contact. Test equipment should support all terminal types in your portfolio, such as DIN, JIS, Flat and Front terminals, with individual clamping tools. Terminal brushing before testing can be integrated into the same machine to ensure clean contact surfaces.
- Which defects are most critical for your product?
Map each relevant defect risk to the station that detects it:
- Performance under load → high rate discharge test
- Leaks in the second cover → air leak test after heat sealing
- Leaks at seal line or container bottom → high voltage leakage test
- Incorrect fill quantity → check weight before and after filling
This mapping quickly shows where your current line has gaps and which stations are essential rather than optional.
In short: Define product types, terminal types and critical defects first. The equipment selection follows from there.
Â
Step 2: Match Test Sequence to Throughput
Once you know which tests you need, the next question is where each station sits in the line and whether it can keep up with your production rate.
A typical test sequence in a lead-acid finishing line looks like this:
- Air leak test directly after heat sealing, before filling
- Check weight before filling
- Electrolyte filling
- Check weight after filling, compared with the recipe weight
- Formation
- Electrical end of line tests (OCV, CCV, deltaV, HRD) in the finishing area
- High voltage leakage test in the finishing line
- Labeling or marking of data codes
The logic behind this order is simple: every check should happen as early as the defect can be detected. A seal problem is visible directly after heat sealing, so there is no reason to fill, form and finish that battery first. Electrical performance, on the other hand, can only be tested after formation.
Throughput is the second factor. In a linked line, the slowest station sets the pace for everything around it. When comparing equipment, check the rated capacity of each station against your target output. For example, a check weight system handles up to 6 batteries per minute, a labeling machine up to 12 batteries per minute. Where a station cannot keep up, the options are to run parallel units or to combine several functions in one machine.
Reject handling belongs in the sequence plan too. Each test station should sort failed batteries onto its own reject table, so a defect is removed at the point where it is found and can be traced back to a specific test.
In short: Place each test where the defect first becomes visible, and size every station for your target throughput.
Â
Step 3: Standalone Stations vs. Combination Machines
With the test sequence defined, the next decision is how to build it: as a series of individual stations, or with combination machines that integrate several functions in one unit.
Combination machines bring several process steps together under one control system. Examples from lead-acid finishing lines:
- 4-in-1 automotive finishing: terminal brushing, high rate discharge test, post greasing and needle marking of data codes in one machine, for DIN and JIS terminals
- 2-in-1 industrial HRD test: terminal brushing plus high rate discharge test and internal resistance (ACR) measurement, for DIN and flat round terminals
- HV leakage test combined with discharge test: the high voltage leakage test can be adapted to a discharge test machine as a combination unit
These machines run all stations from a single PLC and one HMI, save floor space and reduce costs. Each function unit can still be used individually or in combination.
Standalone stations make sense where flexibility and scalability matter most. A modular E-load system, for example, can be operated as a standalone unit and scaled up to 3000 A as test requirements grow.
| Combination machine | Standalone station | |
|---|---|---|
| Floor space | Lower, several functions in one unit | Higher, one footprint per station |
| Control | One PLC, one HMI | Separate controls per station |
| Transfers between steps | Fewer | More |
| Flexibility | Functions usable individually or combined | Stations can be added, moved or replaced independently |
| Best fit | Stable product mix, limited space | Changing requirements, stepwise line expansion |
In practice, many lines use both: combination machines where process steps naturally belong together, such as brushing directly before HRD testing, and standalone stations where capacity or future changes are hard to predict.
In short: Combine functions that always run together, and keep stations separate where you need room to grow.
Step 4: Plan for Test Data and Traceability
Test equipment decides whether a battery passes or fails. Test data decides whether the same defect happens again tomorrow.
Every end of line test produces measurements: voltages, internal resistance, discharge behavior, leak results. If these values are only used for a pass/fail decision on the machine, most of their value is lost. Stored and linked to the individual battery, they become the basis for finding root causes upstream.
What to plan for:
- Data availability at machine level: Test systems should provide their measurements for higher-level systems. The CMWTEC E-load software, for example, makes all recorded data available at PLC level for pick-up by SCADA systems, and the high voltage leakage test offers an interface to read out test data.
- Central storage: A production data management system such as DataManager stores filling volumes, test results, batch information and quality parameters in a central SQL database, enabling traceability from the individual battery to the finished product.
- Integration: DataManager connects directly to CMWTEC machines and integrates with existing SCADA and ERP systems. It is available as a Basic version for single machines and an Advanced version for complete lines.
- Battery identification: Traceability requires that each battery can be identified. Barcode scanning before weighing or 2D code scanning on combination machines links measurements to a specific unit.
Why this matters on the shop floor: When filling data and end of line results are stored together, a pattern in HRD rejects can be traced back to a specific filling batch or process window. Production managers can monitor line performance and identify deviations without specialist IT knowledge.
In short: Plan test data as part of the equipment decision, because traceability turns every reject into information for process improvement.
Lead-Acid vs. Lithium: How End of Line Testing Equipment Differs
Many battery manufacturers now produce both lead-acid and lithium batteries. The principle of end of line testing is the same, but the equipment differs.
| Lead-acid | Lithium | |
|---|---|---|
| Test object | Finished battery | Battery modules (e.g. 12 V, 24 V, 48 V) |
| Contacting | Clamping tools for DIN, JIS, Flat, Front terminals | Manual cable connections for different designs |
| Typical tests | OCV, CCV, deltaV, HRD, air leak, HV leakage | Freely programmable test profiles |
| Line setup | Integrated in the finishing line | Modular and scalable test station |
For lithium, CMWTEC offers a universal end of line test station with a modular layout, short changeover and freely programmable test profiles, designed for a wide range of battery designs.
In short: Lead-acid and lithium need separate end of line testing equipment, but the same planning logic applies to both
Frequently Asked Questions About Battery End of Line Testing Equipment
What equipment is needed for battery end of line testing?
A lead-acid end of line setup typically combines an electrical test machine for OCV, CCV, deltaV and high rate discharge, a high voltage leakage test and a labeling station. It is supported by in-process checks such as an air leak test after heat sealing and check weight before and after filling. The exact configuration depends on battery types, terminal types and target throughput.
What is the difference between OCV and CCV testing?
OCV (open circuit voltage) is the battery voltage measured without load. CCV (closed circuit voltage) is measured while a load is applied. The difference between the two, deltaV, indicates how the battery behaves under load. All three values can be measured on one end of line test machine with integrated E-load modules.
Is leak testing part of end of line testing?
Partly. The air leak test takes place directly after heat sealing, before filling, so it is an in-process check. The high voltage leakage test runs in the finishing line and checks the seal line and container bottom of the finished battery. Together, they cover the main sealing areas at two stages of production.
Can several end of line tests be combined in one machine?
Yes. Combination machines integrate several functions under one PLC and HMI. Examples include a 4-in-1 machine for terminal brushing, HRD testing, post greasing and needle marking, or a high voltage leakage test combined with a discharge test. Each function can still be used individually.
How does end of line test data support traceability?
When test results are stored centrally together with filling volumes and batch information, every battery can be traced from production to finished product. A production data management system such as DataManager makes this data available for monitoring line performance and identifying deviations.
Conclusion & Next Steps
Choosing battery end of line testing equipment is not a matter of buying individual machines. It is about building a test concept that fits your products and your process. The four-step framework summarized:
- Define your battery portfolio, terminal types and critical defects.
- Sequence each test at the point where the defect first becomes visible, and size every station for your throughput.
- Decide where combination machines save space and where standalone stations give you room to grow.
- Plan test data and traceability from the start, so every reject helps improve the process.
CMWTEC develops and builds end of line test equipment for lead-acid and lithium batteries in Runkel, Germany, from single test stations to combination machines and complete finishing lines. Planning a new line or upgrading your end of line testing? Contact our team to discuss the right test concept for your production.
