The Advantage
The End-of-Line Battery Test Machine is designed for an End-of Line (high rate discharge) test of batteries after the formation in the finishing area. The individual batteries supplied through the conveyor of the test machine are positioned exactly. The test stroke is lowered onto the battery terminals. By our integrated electrical measuring system batteries will be controlled and tested. Therefore, the unit is provided with two control units for each end terminal, positive and negative.
Through close collaboration and a deep understanding of our customers’ needs, we deliver exactly what they expect: exceptional quality, intuitive usability, and tailored, personalized service. Our Premium Finishing Line Equipment is designed with cutting-edge technology to simplify operations and handling, ensuring a seamless experience. Engineered to exceed expectations, this high-tech solution is crafted to meet the highest standards and leave no detail overlooked.
CMWTEC offers complete solutions for battery production—ranging from stand-alone machines and fully automated lines to advanced testing equipment and smart handling systems. Our modular approach enables flexible configurations and seamless integration into existing processes. With the DataManager software, we also provide digital tools for process control, traceability, and production data management. From assembly to end-of-line testing, CMWTEC delivers efficient technology for the entire battery production workflow.
Exact & Precise
Tailored to meet the high-quality standards of original equipment manufacturers, our machines
guarantee precision and reliability.
Years of experience
With years of experience, we craft machines that perform flawlessly, empowering you to focus on what matters most—your production.
Worldwide ambitious
Manufactured in Germany and delivered worldwide, we ensure punctuality and consistency in every project.
Please contact us if you are interested in a machine from our machine portfolio. Or contact us if the machine you are looking for is not described on our website. Our sales team and our engineers will be happy to help you with the design for your specific requirements.

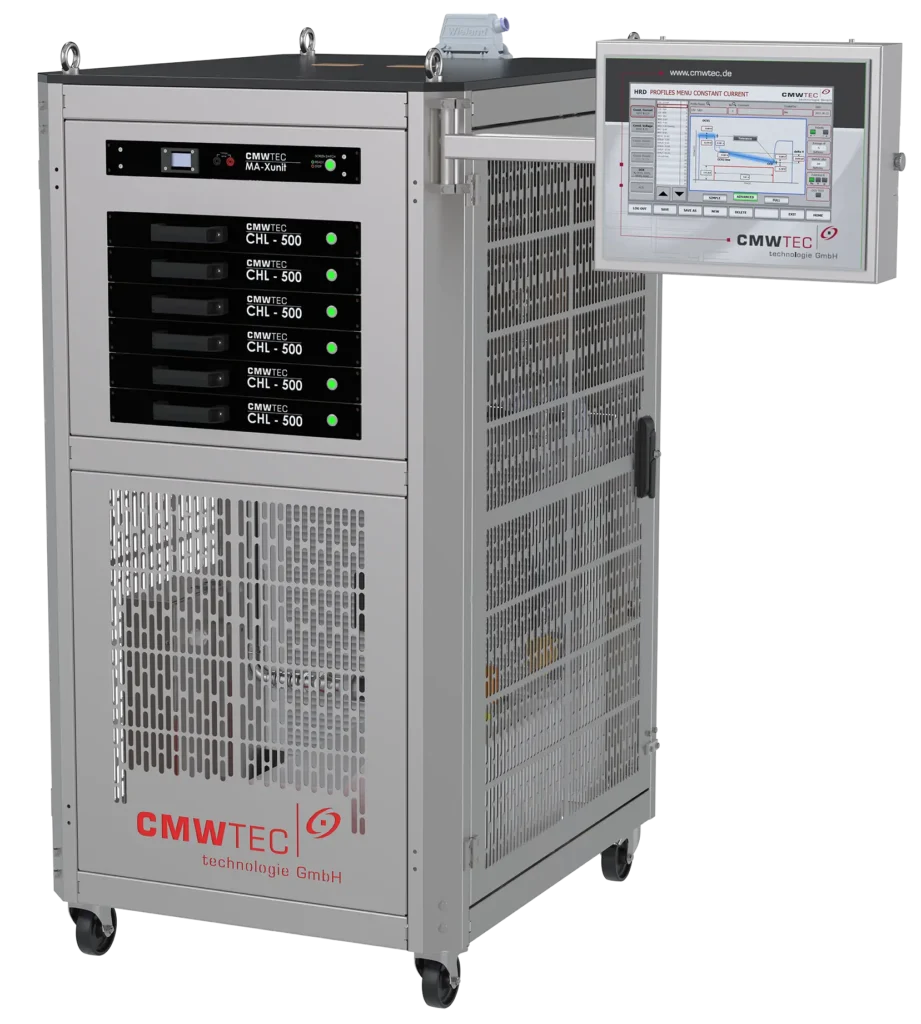

It runs an automatic high rate discharge (HRD) test on automotive car and truck batteries after formation in the finishing area. It measures OCV, CCV and deltaV with integrated CMWTEC CHL500 E-Load modules from 500 A up to 3000 A and is controlled by the EOL control software. More about the modules and the software: End-of-Line Test E-Load and Software.
The test stroke is lowered onto the battery terminals, and test clamps shaped like the terminals grip the positive and the negative terminal. The clamps are opened and closed pneumatically. Individual clamping tools are available for DIN, JIS, flat and front terminals.
It tests automotive car and truck batteries from 20 to 70 kg at up to 8 batteries per minute, depending on test time. Battery heights are adjusted by a vertical servo motor. Batteries that fail the test are rejected onto a table at the end of the machine.
Yes. It can be adapted to a High Voltage or Air Leak test machine as a combination unit. Change-over times are short, and a fully automatic change-over is available as an option.
